PHT/PHVT Turning rotary table
The PHT/PHVT turning rotary table delivers dual-function capability-precision turning and milling. Designed for both horizontal and vertical use, this CNC rotary table combines versatility and reliability in high-demand machining applications.
PHT-PHVT
Turning
- Turning and milling uses.
- 2 speed gearboxes.
- “TWIN DRIVE” rotating drive.
- Automatic hydraulic clamping system.
- Configurable according to customer’s needs.
- Possibility of adaptation to different encoder models.
Twin Drive system for heavy-duty torque

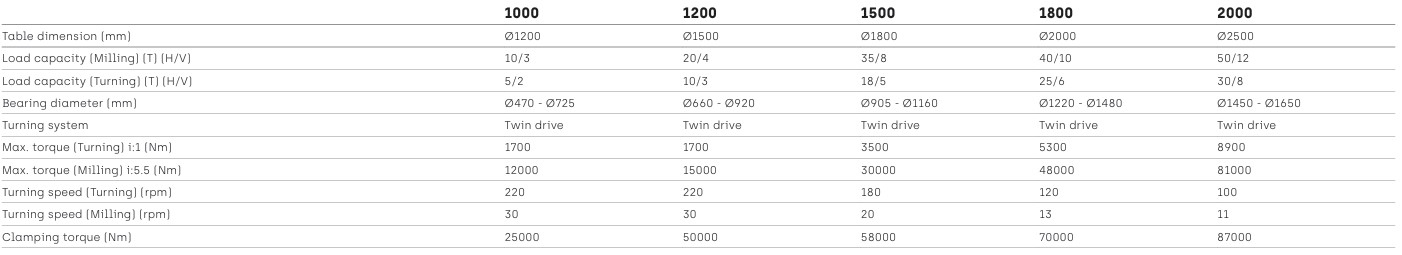

This rotary table ensures high torque output with minimal backlash-ideal for demanding machining tasks. Available from Ø1200 to Ø2500 mm, it supports turning torque up to 1,700 Nm and milling torque up to 15,000 Nm.
Automatic hydraulic clamping for stable setup
Featuring automatic hydraulic clamping, the PHT/PHVT secures the table with up to 50,000 Nm of locking torque, stabilizing setup during heavy cuts. This ensures accuracy and repeatability across both horizontal and vertical positions.
Flexible horizontal and vertical work positions
With configurations for horizontal/vertical work positions, the rotary table adapts to various machine tool setups for turning and milling. Load capacities range from 5 T to 50 T depending on diameter and orientation, offering flexibility for diverse industrial needs.
CNC integration, encoders & custom configurations
Modular features include custom encoder options, bespoke rotary table configurations, and dimensions tailored to your process. Suited for continuous CNC workflows, the table excels in multi-axis automation, improving efficiency and accuracy.
Need a heavy-duty, dual-purpose rotation system?
Contact Zeatz today to specify your PHT/PHVT turning rotary table with the configuration that suits your machining demands.
