PH/PHV twin drive rotary table
The PH/PHV twin drive rotary table features a dual-pinion worm gear system and automatic hydraulic clamping, designed for horizontal and vertical CNC applications. Built on a modular platform it is configurable according to your workbench setup with encoder options, levelling, and an optional through-hole for custom machining solutions.
PH-PHV
Twin Drive
- “TWIN DRIVE” double pinion gear rotating drive.
- Automatic hydraulic clamping system.
- Working position: Horizontal and Vertical.
- Configurable according to customer’s needs.
- Possibility of table plate, levelling or adapted to the customer’s bench.
- Possibility of adaptation to different encoder models.
- Possibility to have a through hole.
Dual-pinion twin drive for heavy-duty performance
The dual drive with double pinions offers exceptionally high torque and repeatable precision, even in intensive milling operations. This robust transmission system is ideal for users who need heavy-duty rotary tables, thanks to its high load capacity and structural rigidity.
Hydraulic clamping
Equipped with automatic hydraulic clamping, the PH/PHV ensures secure locking across both horizontal and vertical positions. This feature stabilizes the table under heavy machining forces while maintaining high precision and safety.
Optional through hole and custom configurations

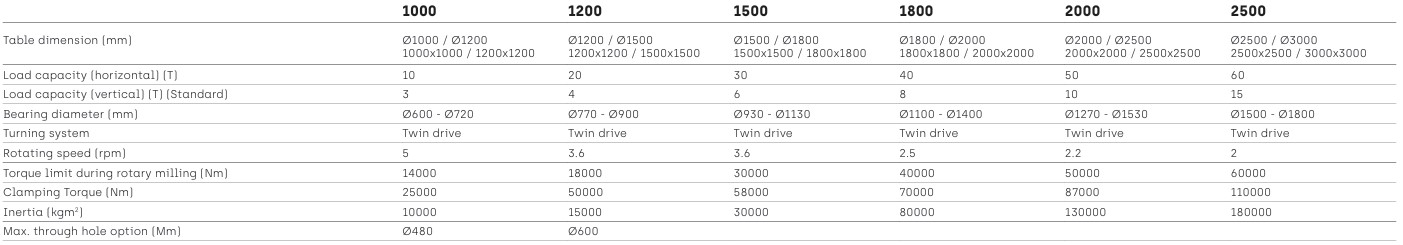

Customize your PH/PHV with an optional through hole, available up to Ø600 mm. Choose from table diameters 1000–3000 mm, encoder variations, surface finishes, and bench-compatible configurations tailored to your shop floor needs.
Are you ready to equip your CNC line with a heavy-duty twin drive rotary table?
Contact Zeatz now to discuss the PH/PHV Twin Drive’s configuration to enhance your machining capability.
