Linear option for rotary tables
Zeatz offers a configurable linear option designed to complement our rotary tables with high-performance linear movement. Whether your application requires ball screw systems for precise control or rack and sprocket chain drives for longer travels, this modular solution ensures seamless horizontal integration for demanding CNC environments.
LINEAR
Option
– PHT
– MDH
– PT
- Maintenance – free linear sliders (5 years / 20000km).
- Linear drive with ball screw or rack and sprocket chain depending on the length of the run.
- Working position: Horizontal.
- Configurable according to customer’s needs.
Maintenance-free linear sliders
Equipped with maintenance-free linear sliders, the system is rated for up to 5 years or 20,000 km of operation without checking. This reduces downtime and total cost of ownership, while ensuring stable, accurate positioning throughout its lifecycle-even under continuous use.
Horizontal linear movement integration

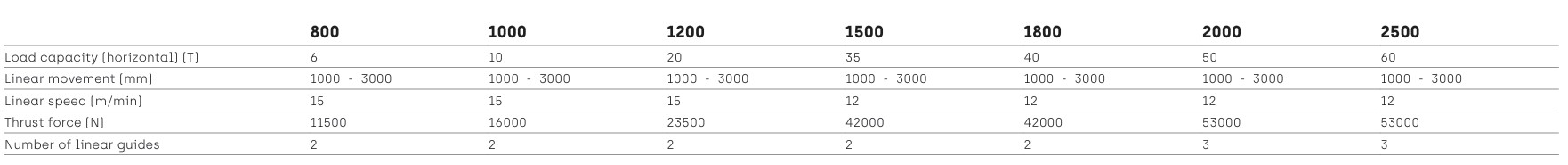

The entire assembly is engineered for horizontal mounting, enabling integration with rotary tables in multi-axis production setups. The system supports high load capacities (6, 10, or 20 T models) and includes automatic hydraulic locking for added stability during machining cycles.
Need a rotary table with integrated linear movement?
Explore the Zeatz linear option and upgrade your production line with a precision linear drive system. Request a quote now to get a custom configuration that fits your needs.
